Product Description:

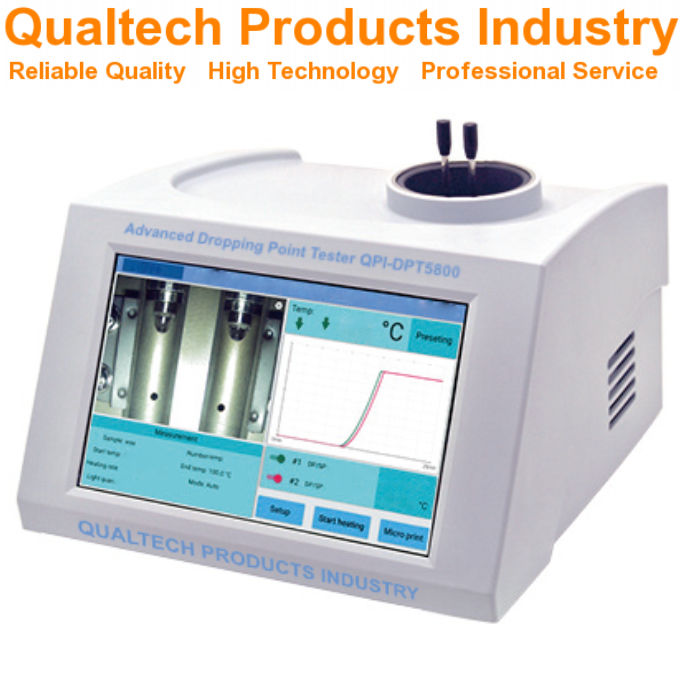

Qualtech Products Industry Dropping Point Tester is a precision Thermal Automatic Dropping and Softening Point Tester to automatically measure the Dropping Point and the Softening Point of a wide range of samples including wax, resin, lubricants, fat, grease and related sample materials. The integrated Advanced Dual Cartridge System allows for the simultaneous testing of two samples at the touch of a button.
The Softening Point is the temperature at which a solid sample begins to soften.
The Dropping Point is the temperature at which a solid sample begins to release drops.
The Advanced Dual‑Sample Dropping & Softening Point Tester is a high‑precision thermal analysis instrument designed for reliable characterization of greases, waxes, resins and other thermosoftening materials. Equipped with an integrated High Resolution Video Recording System, it provides clear visual documentation of each test cycle, ensuring traceable and reproducible results. The Dual Sample Configuration increases throughput and supports simultaneous comparative testing under identical conditions. Fully compatible with ASTM and DIN EN ISO and AS/NZS this Advanced Thermal Dropping and Softening Point System delivers accurate Dropping Point, Softening Point and melting‑behavior measurements across a wide range of industrial and laboratory applications.
To determine the Softening Point and the Dropping Point of samples, the sample is placed into the Softening Point Sample Holder of this Automatic Softening Point Tester. The sample is heated steadily and under increasing temperature the point of change in phase is automatically calculated and presented on the large Color Touchscreen Display.
This Advanced Dropping Point Tester is designed and engineered offering the newest microchip technology combined with a large Color Touchscreen Display, an Advanced Dual Sample System, an integrated High Resolution Video Recording System, an advanced Heating System, high-precision Temperature Sensors, an advanced Photo Sensor, user-friendly Menu Navigation, user-friendly Application, user-friendly Sample Handling, high accuracy and high precision, an ergonomic design, reliable performance and much more.
This professional Advanced Dropping Point Tester is designed and engineered to measure the Softening Point and the Dropping Point of a wide range of samples for research and quality management and is used especially in the food industry, the pharmaceutical industry, the medical industry, the chemical industry, the paint industry and many more.
This Automatic Thermal Dropping Point Tester and Advanced Thermal Softening Point Tester is designed and engineered in accordance with international test standards including:
- ASTM D127 (Standard Test Method for Drop Melting Point of Petroleum Wax, Including Petrolatum)
- ASTM D2265 (Standard Test Method for Dropping Point of Lubricating Grease Over Wide Temperature Range)
- ASTM D3104 (Standard Test Method for Softening Point of Pitches (Softening Point Method))
- ASTM D3461 (Standard Test Method for Softening Point of Asphalt and Pitch (Cup-and-Ball Method))
- ASTM D3954 (Standard Test Method for Dropping Point of Waxes)
- ASTM D6090 (Standard Test Method for Softening Point Resins Cup and Ball Method)
Advanced Precision Dropping & Softening Point Tester - Key Features & Application:
🟩 Key Features
🟦 Dual‑Sample Testing
- Test two samples simultaneously under identical conditions
- Ideal for comparative studies, QC workflows, and high‑throughput labs
🟦 Integrated High‑Resolution Video Recording
- Captures every moment of the softening or dropping process
- Provides visual documentation for audits, training, and research
- Enables precise verification of test events
🟦 Wide ASTM Standard Compatibility
- Dropping Point: ASTM D3104, ASTM D3954, ASTM D6090
- Softening Point (Ring‑and‑Ball): ASTM D127
- Thermal Behavior / Melting Profile: ASTM D3461
🟦 Advanced Temperature Control
- High‑accuracy heating system with programmable ramps
- Uniform thermal distribution for consistent results
- Supports a broad temperature range for diverse materials
🟦 User‑Friendly Touchscreen Interface
- Intuitive workflow
- Pre‑loaded ASTM methods
- Automatic data logging and result export
🟩 Materials Suitable for Testing
This instrument is optimized for materials that soften, melt, or deform under controlled heating, including:
🟦 Lubricating Greases
Lithium, calcium, aluminum complex, polyurea, synthetic, and high‑temperature greases.
🟦 Waxes
Paraffin, microcrystalline, petroleum wax, beeswax, carnauba, montan, synthetic waxes.
🟦 Resins & Polymers
Rosin, EVA, hot‑melt adhesives, polyethylene waxes, polypropylene waxes, tackifiers.
🟦 Oils, Fats & Lipids
Hydrogenated oils, cocoa butter, shortening, margarine, palm oil fractions.
🟦 Cosmetic & Pharmaceutical Materials
Lip balms, ointments, waxy excipients, solid perfumes.
🟦 Industrial Chemicals
Sulfur, stearates, fatty acids, plasticizers, sealants, additives.
🟩 Applications
- Quality control in grease and lubricant production
- Wax and resin formulation testing
- Polymer softening and melting analysis
- Cosmetic and pharmaceutical product development
- Food‑grade wax and coating evaluation
- Research laboratories and material science studies
🟩 Why Choose This Instrument
- Combines dropping point, softening point and thermal behavior testing in one device
- Reduces equipment footprint and increases lab efficiency
- Provides visual proof of every test with high‑resolution video
- Ensures compliance with multiple ASTM and ISO Test standards
- Delivers highly repeatable, traceable, and audit‑ready results
Advanced Automatic Softening Point Tester - Features:
- Advanced Automatic Dropping & Softening Point Tester
- Newest Microchip Technology
- Large Color Touchscreen Display
- High Resolution Video Recording System
- Dual Sample System to test two samples simultaneously side by side
- Automatic Precision Softening Point Measurement
- Automatic Precision Dropping Point Measurement
- Advanced Adjustable Heating System
- High-Precision Temperature Sensors
- High-Precision Photo Sensor
- User-friendly Menu Navigation
- User-friendly Application
- User-friendly Sample Handling
- Integrated Safety Features
- High Accuracy & High Precision
- Ergonomic Design & Reliable Performance
- Engineered in accordance with international test standards including ASTM D127, ASTM D2265, ASTM D3104, ASTM D3461, ASTM D3954, ASTM D6090
Advanced Automatic Dropping Point Tester – Specifications:
| Model | QPI-DPT5800 | QPI-DPT5800P | QPI-DPT5800S |
|---|---|---|---|
| Newest Microchip Technology | Yes | Yes | Yes |
| Large Color Touchscreen Display | Yes | Yes | Yes |
| High Resolution Video Recording | Yes | Yes | Yes |
| Dual Sample System | Yes | Yes | Yes |
| Measuring Range | RT - 300°C | RT - 360°C | RT - 400°C |
| Display Resolution | 0.1°C | 0.1°C | 0.1°C |
| Test Programs | 380 | 580 | 580 |
| Automatic Heating Programs | 0.1°C/min - 20°C/min | 0.1°C/min - 20°C/min | 0.1°C/min - 20°C/min |
| Memory Size | 64GB | 128GB | 128GB |
| High-Precision Temperature Sensors | Yes | Yes | Yes |
| User-friendly Menu Navigation | Yes | Yes | Yes |
| User-friendly Application | Yes | Yes | Yes |
| User-friendly Sample Handling | Yes | Yes | Yes |
| High Accuracy & High Precision | Yes | Yes | Yes |
| Ergonomic Design | Yes | Yes | Yes |
| Reliable Performance | Yes | Yes | Yes |
| Voltage | 110 Volts 60Hz & 220 Volts 50Hz | 110 Volts 60Hz & 220 Volts 50Hz | 110 Volts 60Hz & 220 Volts 50Hz |
| Engineered in accordance with international testing standards including ASTM D127, ASTM D2265, ASTM D3104, ASTM D3461, ASTM D3954, ASTM D6090 | |||
Advanced Dropping & Softening Point Tester – Included items:
- Advanced Precision Dropping & Softening Point Tester
- Accessories
- Quality Certificate
- Carefully Calibrated
- Calibration Certificate
- User manual
- Extended Warranty
- Lifetime Support
