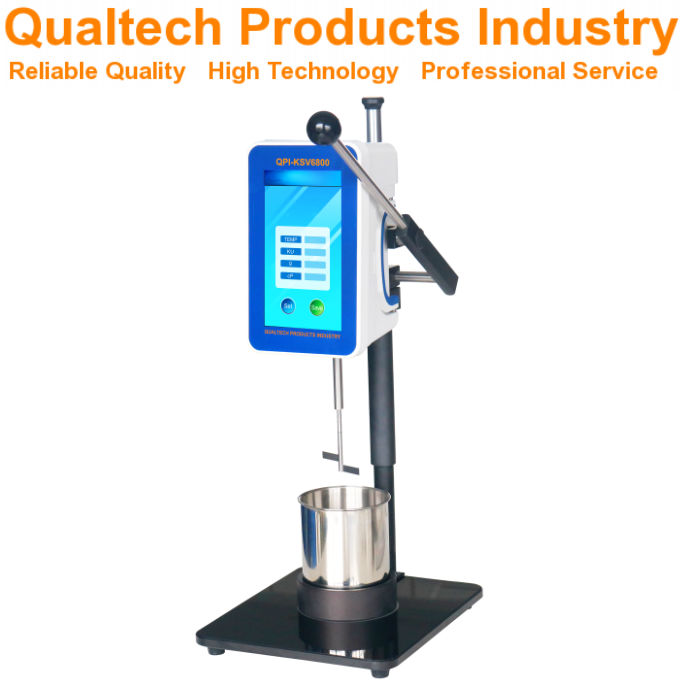

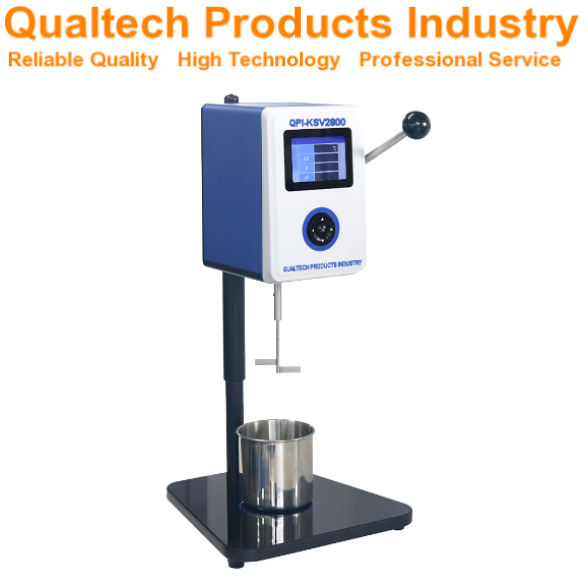

Stormer KU Viscometer - Technical Application Overview:

Tämä ammattilainen Stormer KU -viskosimetri is a standardized instrument used to determine the consistency and flow behavior of paints, coatings and related non‑Newtonian materials expressed in Krebs Units (KU). Its design and operating principle are tightly aligned with ASTM D562, which defines the Krebs scale and the measurement method. This Precision KU Viscometer is widely used in R&D laboratories, production environments and quality‑control systems where reproducibility, batch‑to‑batch uniformity and regulatory compliance are essential.

1. Measurement Principle

Tämä Precision Stormer Viscometer operates on a constant‑torque and variable‑speed principle:

• A precision engineered paddle‑type rotor (the KU spindle) is immersed in the coating sample.
• Tämä professional KU Viscometer applies a fixed driving torque.
• The rotational speed achieved under that torque is measured.
• The speed is converted into:

           i) Krebs Units (KU) — the primary reporting scale
           ii) Grams (g) — the load required to maintain rotation
           iii) Centipoise (cP) — an approximate viscosity value for reference

Because the torque is constant, this Precision Stormer Viscometer directly reflects the resistance of the material to deformation, which is especially relevant for shear‑thinning, non‑Newtonian coatings.

2. Materials and Systems Where KU Measurement Is Appropriate

Tämä Precision Stormer KU Viscometer is specifically intended for architectural and industrial coatings that exhibit non‑Newtonian behavior at low shear rates. Typical applications include:

• Latex Paints (interior and exterior)
• Waterborne Coatings
• Acrylic Emulsions
• Alkyd Paints
• Primers and Undercoats
• Varnishes and Sealers
• Printing Inks (selected types)
• Coating Intermediates and Binders

These materials often require viscosity control to ensure:

• Proper brushability
• Uniform roller application
• Stable sag resistance
• Predictable leveling and flow
• Consistent film build

The KU scale is optimized for these behaviors and correlates well with real‑world application performance.

3. Role in Production and Quality Control

In manufacturing environments, this Precision KU Viscometer is used to:

a. Verify batch consistency

Each production batch is checked against a defined KU specification window. Deviations indicate:

• Incorrect pigment‑volume concentration
• Improper binder ratio
• Solvent imbalance
• Incomplete dispersion

b. Monitor raw‑material variability

Changes in resin viscosity, pigment wetting, or thickener efficiency are quickly detected.

c. Control let‑down and thinning operations

Operators adjust water or solvent additions to achieve the target KU value.

d. Support process adjustments

Viscosity trends can indicate:

• Temperature effects
• Shear history
• Polymer hydration state
• Thickener activation

e. Provide regulatory and customer documentation

Many coating specifications explicitly require viscosity reporting in KU.

4. Instrument Configuration and Operating Conditions

A professional application requires attention to:

Sample Preparation

1. Homogenize the sample without introducing air.
2. Condition to 23 ± 2 °C unless otherwise specified.
3. Ensure adequate sample depth for full paddle immersion.

Instrument Setup

1. Level the viscometer.
2. Verify spindle cleanliness and correct installation.
3. Confirm free rotation without mechanical drag.

Measurement Procedure

• Immerse the precision engineered KU Paddle to the reference depth.
• Start this Precision Stormer Viscometer and allow stabilization.
• Record KU, g and cP values once steady‑state rotation is achieved.

Calibration and Verification

Although this Professional Stormer Viscometer does not require frequent calibration, professional practice includes:

• Periodic verification using certified KU Calibration Oils
• Dimensional checks of the precision engineered KU Paddle ja Stainless Steel Sample Container
• Inspection of the drive mechanism for wear


5. Interpretation of Results

The KU value provides a functional viscosity index that correlates with application properties:

• Lower KU (40–60) → thin, high‑flow coatings
• Medium KU (60–80) → general‑purpose architectural paints
• Higher KU (80–110) → high‑build or high‑solids coatings

Because the Krebs scale is nonlinear, small KU changes can represent significant differences in flow behavior.

6. Advantages of the Stormer KU Method and this Precision Ku Viscometer:

• High reproducibility for non‑Newtonian materials
• Direct correlation with real‑world application performance
• Simple operation suitable for production environments
• Standardized method (ASTM D562) ensures cross‑laboratory comparability
• Insensitive to operator technique, unlike flow cups

These characteristics make this Professional Krebs Stormer Viscometer a cornerstone instrument in the coatings industry.
