Product Description:
Qualtech Products Industry Bulk Density Meter is a precision Bulk Density Volumeter ISO Method R 60 to determine the Bulk Density and the Apparent Density of loose sample products and loose sample materials including metal powders, chemical powders, pharmaceutical powders, food powders and related samples.
To measure the Bulk Density and the Apparent Density the sample is added into the specified funnel and passes through the funnel into the density cup with a specified volume. After the sample passes through the lower funnel the density is measured with a Density Cup and calculated by dividing the mass of the sample by the known volume of the cylinder.
This Bulk Density Volumeter ISO Method R 60 is a professional laboratory density test instrument to efficiently measure the density and the specific gravity of loose sample materials including carbon powder, fiber powder, cosmetic powder, cement powder, powdered food, powdered drying agents, metal dust and metal powder and related materials.
This professional Bulk Density Meter is designed and engineered offering the newest design in accordance with ISO Method R60, a precision engineered Funnel with an Upper Orifice Diameter of 56mm and a Lower Orifice Diameter of 33mm, integrated Funnel Lower Orifice Lid Mechanism to easily open and to close the Lower Orifice, a precision engineered Density Cup with a volume of 400cm3, a Lower Orifice to Density Cup distance adjustment mechanics, adjustable Funnel Position to ensure highest accuracy and flexibility, integrated Level, adjustable Level Feet, a precision engineered Stand, made of high quality material SS316, user-friendly application, user-friendly sample handling, high accuracy and high precision, an ergonomic design, reliable performance, longevity and much more.
This Bulk Density Meter ISO R60 is made of high quality stainless steel and is precision engineered to ensure high accuracy and high repeatability of your sample tests.
This professional Bulk Density Volumeter ISO Method R60 is designed and engineered in accordance with international test standards including:
Bulk Density Meter ISO Method R60 - Precision Bulk Density Determination
The ISO R60 procedure determines the bulk density of metallic powders under standardized conditions of free fall and gravity packing. It quantifies how a powder occupies volume when poured through a calibrated funnel into a defined container, providing a reproducible measure of packing behavior and flowability.
Apparatus

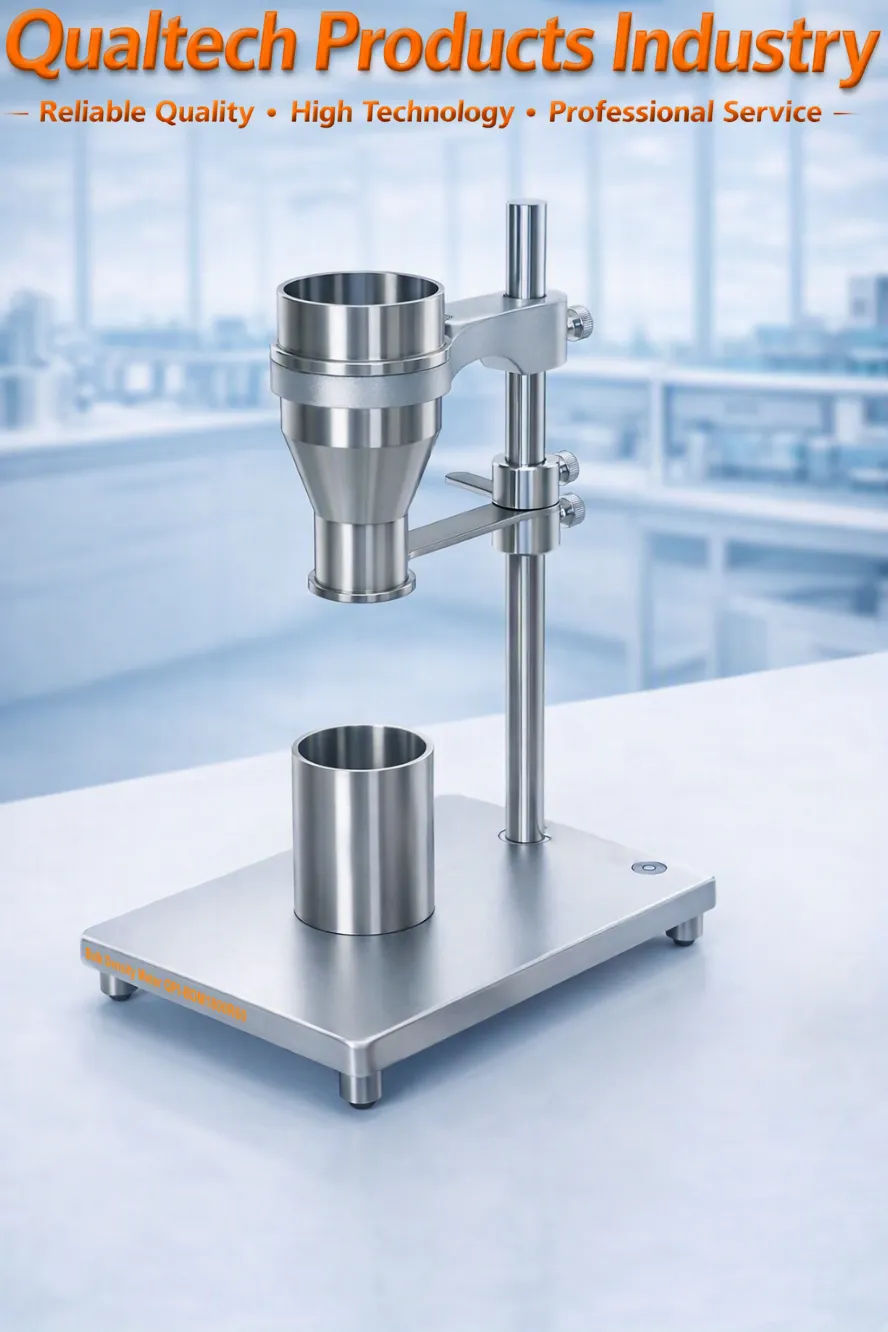

QPI‑BDM1800R60 Bulk Density Meter, designed in accordance with ISO R60 specifications:
Funnel assembly: stainless‑steel funnel with a 25 mm orifice and a 60° cone angle, precision‑machined for consistent flow.
Receiving cup: 25 cm³ cylindrical container, internal diameter and height calibrated to ISO R60 tolerances.
Support frame: rigid alignment between funnel and cup, ensuring vertical discharge.
Base platform: adjustable leveling feet for horizontal setup.
Analytical balance: resolution ± 0.01 g.
Sample handling tools: scoop, spatula, and brush for cleaning between tests.
Principle of Operation
A metallic powder is allowed to flow freely through the funnel into the receiving cup under gravity. The mass of powder filling the known volume is measured, and the ratio of mass to volume gives the bulk density. The test reflects the powder’s particle size distribution, shape, and surface characteristics.
Test Procedure
1. Instrument Preparation
Ensure the QPI‑BDM1800R60 is clean, dry, and free of residual powder.
Level the base using the adjustable feet and a spirit level.
Confirm that the funnel outlet is centered directly above the receiving cup.
2. Sample Conditioning
Bring the powder to standard laboratory temperature (typically 23 ± 2 °C).
Mix gently to homogenize without altering particle size or moisture content.
3. Filling the Funnel
Close the funnel outlet using the supplied shutter or plate.
Pour the powder into the funnel until it is nearly full.
Avoid vibration or compaction during loading.
4. Initiating Flow
Remove the shutter quickly to allow the powder to discharge freely.
Do not tap or disturb the apparatus during flow.
Allow the cup to fill completely until flow stops naturally.
5. Leveling the Cup
Use a straight edge to strike off excess powder flush with the rim.
Maintain a smooth motion to avoid compressing the sample.
6. Weighing
Weigh the filled cup to the nearest 0.01 g.
Subtract the mass of the empty cup to obtain the net sample mass.
7. Calculation
Report results to three significant figures.
8. Repeatability
Perform at least three measurements.
The variation between results should not exceed ± 1 %.
Engineering Notes
ISO R60 is optimized for metallic powders such as iron, copper, and alloy blends.
The QPI‑BDM1800R60’s funnel geometry ensures consistent flow and minimizes bridging.
Cleaning between tests prevents contamination and maintains dimensional accuracy.
Stainless‑steel construction provides thermal stability and corrosion resistance for long‑term laboratory use.
Interpretation of Results
Bulk density measured by ISO R60 reflects the powder’s packing efficiency under gravity. It is used for:
Quality control of powder metallurgy feedstocks.
Comparative evaluation of particle morphology.
Process calibration for compaction, sintering, and additive manufacturing.
Verification of supplier specifications for metallic powders.
Bulk Density Meter ISO Method R60 - Features:
- New Design in accordance with ISO Method R60
- Instant Bulk Density Measurement
- Instant Apparent Density Measurement
- Precision engineered Funnel
- Integrated Funnel Lower Orifice Lid Mechanism
- Adjustbale Funnel to Density Cup Distance
- Precision engineered Density Cup
- Engineered for Plastic Powders
- Engineered for Metal Powders
- Engineered for Paint Pigments
- Engineered for Pharmaceutical Powders
- Solid & Ergonomic Stand
- Funnel is made of one larger piece of Stainless Steel to ensure highest precision
- Made of high quality materials
- High Accuracy & High Precision
- User-friendly Application
- User-friendly Sample Handling
- Ergonomic Design
- Reliable Performance & Longevity
- Engineered in accordance with international test standards including ISO 60
Bulk Density Meter ISO Method R60 – Specifications:
| Model | QPI-BDM1800R60 |
|---|---|
| Precision engineered Funnel Design | Yes |
| Instant Apparent Density Measurement | Yes |
| Adjustable Funnel Height & Position | Yes |
| Funnel Lower Orifice Lid Mechanism | Yes |
| Funnel Height | 115 mm |
| Upper Funnel Orifice | Ø 56 mm |
| Lower Funnel Orifice | Ø 33 mm |
| Density Cup | 100 cm³ |
| Adjustable Lower Orifice to Density Cup Distance | Yes |
| Adjustable Leveling Feet | Yes |
| Integrated Level | Yes |
| Made of High Quality Materials | Yes |
| Carefully Calibrated & Precision Engineered | Yes |
| High Accuracy & High Repeatability | Yes |
| Ergonomic Design | Yes |
| Reliable Performance & Longevity | Yes |
| Engineered in accordance with international test standards including ISO Method R60 | |
Bulk Density Meter ISO Method R60 – Included items:
- Bulk Density Volumeter ISO R60
- Precision engineered Funnel
- Precision Density Cup
- Wide range of included accessories
- Quality Certificate
- Carefully Calibrated
- User manual
- Extended Warranty
- Lifetime Support
